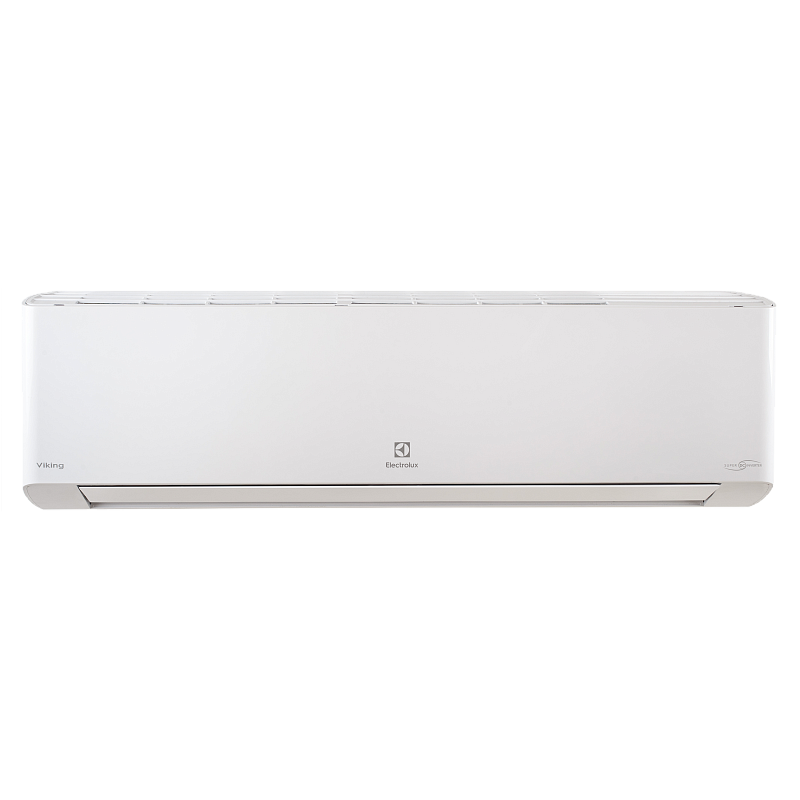

Inverter split system ELECTROLUX EACS/I-24HVI/N8_21Y EEC set

Data sheet

• Product features
  • Inverter technology
    yes
  • Energy efficiency class
    A+++
  • Max. power consumption
    3.8 kW
  • Min. operating air temperature for the outdoor unit
    -30 °С
  • Effective for premises up to
    70 m²



  Stable heating at -30 °C



  4D swing



  Plus temperature maintenance



  I-Feel function
• Key characteristics
  • Inverter technology
    yes
  • Energy efficiency class
    A+++
  • Max. power consumption
    3.8 kW
  • Min. operating air temperature for the outdoor unit
    -30 °С
  • Effective for premises up to
    70 m²
• Product documents
  Product documents

  • PDF Download PDF
  • PDF Download PDF
• All characteristics

  Main

  • Min. supported temperature: 16 °С
  • Max. supported temperature: 30 °С
  • Indoor unit case color: White
  • Refrigerant: R32
  • Max. working air temperature for the external unit: 54 °С
  • Min. operating air temperature for the outdoor unit: -30 °С
  • Outdoor unit case color: White
  • Warranty period: 2 years

  Consumer

  • Indoor unit noise level: 35 dB
  • Effective for premises up to: 70 m²
  • Max. outdoor unit noise level: 58 dB

  Performance

  • Max. heating performance: 9.4 kW
  • Max. cooling performance: 9 kW
  • Nominal heating capacity: 7 kW
  • Nominal cooling capacity: 7 kW

  Indication

  • Air temperature indication (near the control panel): yes
  • Digital display: yes

  Protection and safety

  • Fault self-diagnosis system: no
  • Energy efficiency class: A+++

  Ensemble

  • Air purification filters: Воздушный фильтр
  • Control panel included: yes
  • Set of fasteners included: yes

  Packaging weight and dimensions

  • Product weight with packaging (gross): 91 kg
  • Product packaging height: 62 cm
  • Product packaging width: 100 cm
  • Product packaging depth: 100 cm

  Technologies

  • Inverter technology: yes

  Control

  • Real time setting: yes
  • Louvers position control from control box: yes
  • On timer: yes
  • Temperature setting accuracy: 1,0 °С
  • Control type: Remote wireless
  • Shutdown timer: yes

  Modes

  • SLEEP mode: yes
  • Heating mode: yes
  • Dehumidification mode: yes

  Functions

  • Intensive cooling function: no
  • Hot start function: yes

  Mounting

  • Max. trunk length (route): 50 m
  • Max. height difference between int. and outdoor units: 30 m
  • Max. power consumption: 3.8 kW
  • Power consumption in heating mode: 1750 W
  • Power consumption in cooling mode: 1850 W
  • Network cable: Yes (with plug)
  • Power supply voltage: 220 - 240 V

  Product weight and dimensions

  • Outdoor unit weight (net): 65 kg
  • Outdoor unit height: 0.79 m
  • Outdoor unit width: 0.92 m
  • Outdoor unit depth: 0.37 m
  • Indoor unit weight (net): 17 kg
  • Indoor unit height: 0.327 m
  • Indoor unit width: 1.101 m
  • Indoor unit depth: 0.29 m
